Panels you can count on.

The all-in-one home energy storage solution

The solar panel business is flourishing as renewable energy gains prominence. Companies in this sector focus on manufacturing, installing, and maintaining solar panels to harness clean energy from the sun.

  • Installing solar panels at home allows homeowners to generate electricity from a renewable source.
  • Home solar installations contribute to a cleaner environment by harnessing renewable energy.
  • Homes equipped with solar panels often have higher property values.
  • Solar panels provide a reliable source of electricity, offering a degree of independence and resilience.

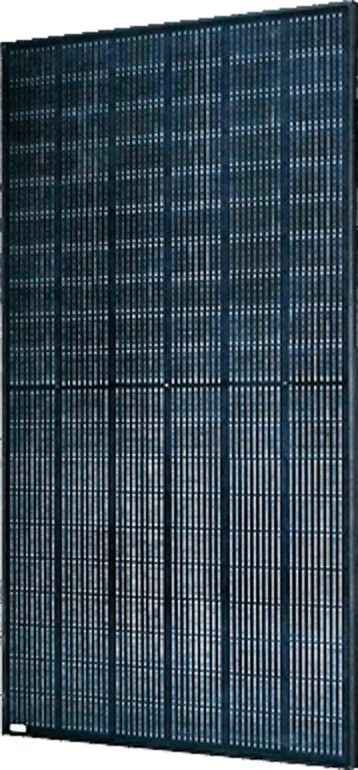

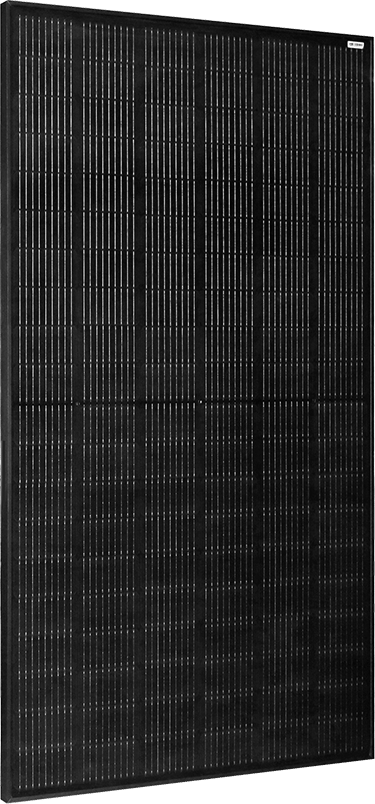

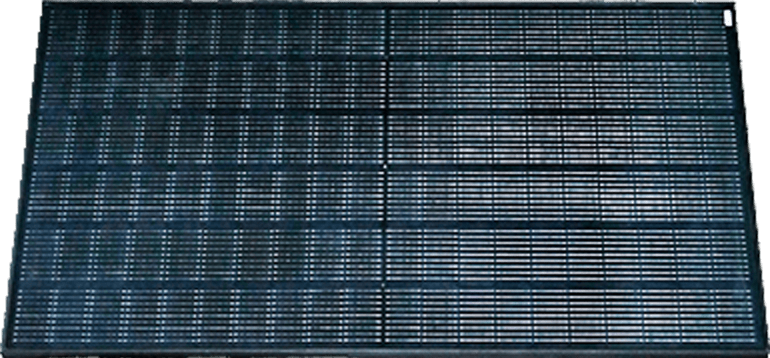

SIMPLE ADD OUR SOLAR PANELS

Store the solar energy you product during the day with your Energizer Solar Panels.

Discreet control

Easy access to the system controls and installer access panel, cleverly concealed behind a patented weatherproof flap.

Hardware you can depend on

From a brand you can trust, makers of durable, long-lasting batteries since 1896.

Technical specifications

Battery specifications
Nominal DC Voltage51.2V
Battery Energy6.14kWh
Max Cont’ Charge Current71A DC
Max Cont’ Discharge Current71A DC
Battery ChemistryLiFePO4
Rated Capacity120Ah
Cell TypePrismatic
Cycle Life10,000
DOD (Depth of Discharge)95%
Protective ClassI
DC Overvoltage CategoryII
Circuit ProtectionIntegrated 80A Magnetic / Thermal Trip Protection
Max DC Voltage58.4V
Short Circuit Current8500A
Inverter specifications
Nominal AC Voltage230V
AC Input Voltage Range180V – 265V
Max AC Output Current16A
Rated AC Power (Grid)3600W
Rated AC Power (Backup)3600W
Max Charge / Discharge Power3600W
Output Frequency50 / 60 Hz
Power Factor Nominal Range0.8 lead to 0.8 lag
AC Overvoltage CategoryIII
Max Inverter Efficiency94%
DRED Device SupportDRM 0-8
Cooling MethodNatural Convection
Environmental working conditions
Ambient TemperatureCharge: 0°C to 45°C / Discharge: -20°C to 50°C
Relative Humidity0 to 95%
Ingress ProtectionIP65
Maximum Altitude2,000m
Physical specifications
Dimensions1244mm H x 420mm W x 183mm D
Case MaterialSteel / Aluminium
Mounting MethodWall Mounted
Net Weight98.5kg
Communication
Internet ConnectionCellular / WiFi / Ethernet
Customer AccessWeb Portal / iOS App / Android App / LCD Panel
Installer AccessInstaller App with direct connection via Bluetooth
Technician AccessLCD Touchscreen Control Panel / Remote Access
DOWNLOAD SPECIFICATIONS (PDF)
